Porsche 981 Boxster/Cayman IPD Competition Plenum Package

$1,320.95 - $2,695.95
(No reviews yet) Write a Review
HP:
+14
TQ:
+12

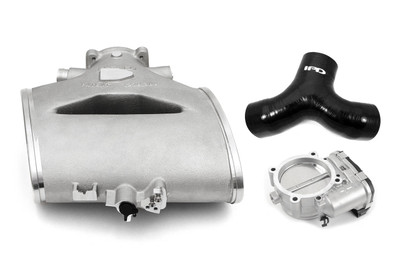

The perfect compliment to Fabspeed's 981 Boxster/Cayman exhaust upgrades, this high performance intake plenum from Innovative Pro Design and upgraded 82mm throttle body provide substantial power gains by increasing the efficiency and flow of the engine's air intake system.

FEATURES:

After a very extensive R&D program, we are proud to launch the new 981 IPD 82mm Competition Plenums specifically designed to work in perfect concert with the upgraded 82mm throttle body. This combination has proven to be extremely effective and deliver even more performance than doing either component on its own. This Competition Plenum package will work with both 3.4L "S" and 2.7L "Non-S" applications.

The 981 intake is nearly identical to the 987.2 intake. Porsche made a few upgrades with the 981, most notably being that the 981 draws outside air from both driver and passenger air intakes instead of the driver's side only as previously found with all 986, 987 and 987.2 applications. IPD has developed a custom silicone hose designed to perfectly fit the larger 82mm throttle body and considerably improve air flow.

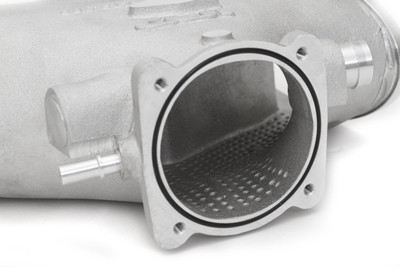

The new 981 Plenums also benefits from the internal dimpling effect that we are now implementing on all future Plenums. This internal dimpling allows us to control the boundary layer and maximize air flow. Just like a dimpled golf ball travels farther than a smooth golf ball. Controlled turbulent air creates less friction and "tumbles" over a given area more efficiently.

Power gains with the 981 Competition Plenum are virtually the same as with the 987.2 Competition Plenum, putting down 14 horsepower and 12 foot pounds of torque at the wheels. The bulk of the power gains from the IPD Plenum begin around 4000 rpm, continues all the way through to redline and become fully realized in the 6000 rpm range. IPD performance gains stay above both factory power curves throughout the entire rev range.

Superior and more efficient design over the factory intake.

The IPD Plenums are products of efficiency that simply improve intake air flow and increase air velocity. The “Y” shape design and dimpled interior surface make air flow more laminar (less turbulent) dramatically improving power and torque across the entire RPM band. Smoother more optimized intake air flow will improve the performance of any engines. The more efficiently an engine breaths, the more efficiently it produces power.



Deliver impressive power gains regardless of modifications.

The superior design of the IPD Plenums optimize flow while increasing air velocity. Period! This applies to any Porsche engine, producing any level of power. The patented “Y” design delivers impressive performance gains for both bone-stock and highly modified Porsches. The more efficient design of the IPD Plenum will always outperform the factory air distributor. The factory intake will become even more detrimental to performance as your increase the power and torque outputs. The bigger the power, the better the IPD Plenum performs.

Produce substantial gains for both turbo and NA applications.

The Plenums always deliver considerable gains on both turbo AND naturally aspirated engines. It’s a fact that the Turbo Plenums do produce more power than the NA Plenums. But the Turbo engines also produce more power. The fact is that the percentage gains of the different Plenum applications are actually almost identical, around 8-10% depending on the specific model.

Aluminum Plenums run cooler and don’t suffer from heat soak.

The Aluminum Plenums do NOT experience heat soak under driving or racing conditions. It is true that aluminum has a higher thermal conductivity than plastic. In fact, aluminum is 650 times more thermally conductive than plastic and has a specific heat capacity that is 550 times higher than plastic. This means the aluminum Plenum actually spreads the energy it’s exposed to 656 times faster than the plastic and can store more than 550 times the amount of energy per unit mass. Bottom line, aluminum can absorb more heat than plastic, but it also takes considerably more energy to heat up and it's losing that energy way faster than the aluminum allowing the IPD Plenum to remain cooler from outside ambient air under driving conditions, ultimately improving engine performance over plastic. Plus, why would Porsche utilize aluminum intakes on GT3’s, GT2’s, Cup Cars and Cup R’s?

ECU Performance Software recommended.

The 981’s are likely, but not guaranteed, to experience a CEL related to increased air-flow after installing the IPD Plenum and larger 82mm GT3 Throttle Body. Unlike previous generation Porsches that used a MAF (Mass Air Flow) style metering device, the new 981’s employ a MAP (Manifold Absolute Pressure) sensor based intake system.  As a result, the factory air flow tables are much more stringent (lower), and the ECU is much more discerning of additional air being introduced into the intact tract.
Assuming the installation was performed perfectly, it seems that about half of all 981 applications (Non-S, S, GTS, Spyder and GT4) will still require a throttle body adaptation after installing of the IPD Plenum and 82mm GT3 TB. This procedure can ONLY be performed with a factory Porsche PIWIS computer. Once the TB adaptation has been performed, you “should” be CEL free.

But occasionally some of the 981 applications will continue to experience a CEL related to the ECU reading intake air flow levels that exceed the threshold values programmed within the firmware of the ECU, ultimately causing one of the following fault codes (P0068, P1095 or P1074). If a CEL continues, we strongly suggest a revised mapping of the ECU or have a qualified Porsche ECU tuner to either disable or isolate and raise the air flow levels within the tables of the ECU to complement the IPD Competition Plenum, larger TB and additional intake air flow being delivered by the IPD upgrade.

Note: These CEL’s do NOT affect performance or reliability of any 981, it’s just the ECU letting you know that the intake tract is flowing more air than the car is programmed to receive, which is exactly what the IPD Plenum is designed to accomplish. This is how the performance gains are being realized.

NOTE: If you are upgrading your throttle body along with the IPD Plenum, you may need to visit a dealership to have them perform a manual throttle body adaptation process. Some customers have reported that installing the throttle body and plenum while the battery is disconnected results in the car performing an adaptation check once the battery is reconnected, alleviating the need to visit a dealership. However, Fabspeed recommends having the adaptation performed at a certified dealership for optimal results. If you need a recommendation for a dealership in your area, please contact us.
