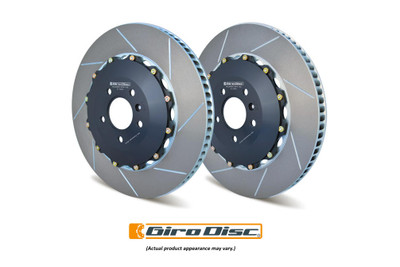

Upgrade the factory 370mm McLaren MP4-12C brake rotors with 380mm premium GiroDisc brake rotors. The Girodisc system is a direct replacement for the OE disc on all vehicles that came equipped with cast iron rotors from the factory.
The central hat section of each rotor is made from strictly U.S. sourced 6061-T6 aircraft specification aluminum. The disc is made from proprietary cast iron, poured in the USA and machined from start to finish in house at Girodisc. The rotor utilizes a curved vane design, developed in racing to act as a centrifugal pump to force cooling air through the disc. The larger 380mm front rotors are greater heat sinks resulting in increased performance on the track, a reduction in brake fade, and improved brake component life.
The rotor and hat have a floating mount system, which utilizes 8 or 10 high strength alloy steel drive pins, manufactured by Girodisc in the USA to their own specifications and cadmium plated for a long lasting corrosion resistance. These pins take the load from braking actions while maintaining the axial and radial float between the hat and disc. The pins are secured by grade 12 cap screws with hardened washers. In order to keep the rotors from making noise when cold, the pins are mounted with anti-noise spring washers on the rotor side which allow the rotor to grow with heat expansion but eliminate the rattle and noise associated with floating rotors. This float also allows the rotor to self center between the pads.
Once the Girodisc system is in place, simply replace the cast iron rotor when needed - contact us for replacements.
- Fits all McLaren MP4-12C models without carbon ceramic rotors
- Sold as a PAIR
- Lighter than stock brakes
- Caliper spacers are included to accommodate the larger 380mm front rotors.
- Rear rotors are OEM size
- Direct factory replacement
- Improved braking performance
- Reduced unsprung weight
- Increased rotor life
- Greater cooling efficiency
- Retains factory e-brake
- Premium grade; made in U.S.A.
When converting from carbon ceramic brakes to GiroDisc iron rotors we STRONGLY recommend replacing all four rotors in order to maintain the factory brake bias and controlled braking in all driving conditions.
